The MP2888A is a digital multiphase pulse width modulation (PWM) controller that supports the digital PWM-VID interface and is compatible with the NVIDIA Open VReg protocol. The MP2888A can be used with the Intelli-Phase TM products of MPS to achieve a polyphase voltage regulator (VR) solution with few external components. The MP2888A can be configured for native 10-phase operation.

The MP2888A uses integrated EEPROM to store and recover device configurations. Device configurations and fault parameters can be easily programmed and monitored through the PMBus/I2C interface. The MP2888A can monitor and report output current using the CS output of Intelli-PhaseTM products.

Based on unique digital multiphase nonlinear control, the MP2888A provides fast load transient response, minimizing the use of output capacitors. Using only one power loop to control both steady state and load transients makes power loop compensation very easy to configure.

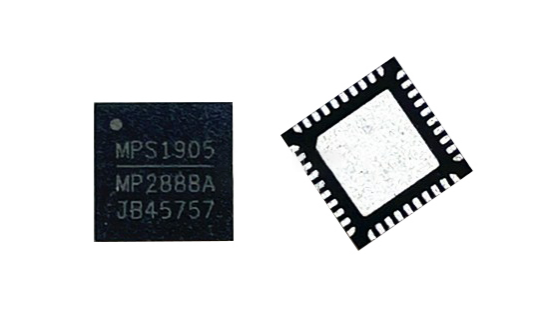

The MP2888A is packaged in a QFN-40(5mmx5mm) package.

Product features and advantages:

• Supports up to 10 phases of work

• The PWM-VID interface supports the NVIDIA Open VReg protocol

• Compatible with PMBus/I2C interface (1MHz bus speed)

• PMBus address programmable pins

• Built-in EEPROM to store personalized configurations

• 200kHz to 5MHz switching frequency range

• Automatic loop compensation

• Fewer external components than traditional analog controllers

• Nonlinear digital control achieves superior transient performance

• Flexible phase allocation

• Automatic phase increment and subtraction improves efficiency across the full load range

• Programmable active phase current balancing function that supports heat balance

• Monitor output voltage/current and input voltage/power

• Temperature monitoring

• Input undervoltage lock protection (VIN UVLO), output overvoltage/undervoltage protection (OVP/UVP), overcurrent protection (OCP), overtemperature protection (OTP) : No action, automatic shutdown function, priority number retry or unlimited automatic recovery

• Intelli-PhaseTM detects MOSFET fault types and automatically logs them to EEPROM

• Password locking function of register map table

• Load-Line digital adjustment function

• QFN-40(5mmx5mm) package in accordance with RoHS specification

Internal block diagram

AP8000 Universal Programmer independently developed by Acroview Technology consists of three parts: host, base plate and adaptor.

About Core Source Semiconductor: Core Source Semiconductor (MPS) is a world-renowned high-performance analog semiconductor company headquartered in San Jose, California, USA. Founded in 1997, it has independent innovative process technology and focuses on new designs and definitions of high-performance power supplies. An analog and mixed-signal semiconductor company with management solutions, it has independently developed more than 4,000 power management products, which are widely used in industries, communication infrastructure, cloud computing, automobiles, and consumer electronics.

About ACROVIEW Technology: ACROVIEW is the Global Leader of Semiconductor Automatic Programming Solutions. The company insists on changing the world with technology, driving the future with intelligence, and continuously creating value for customers. Acroview's AP8000 universal programmer platform and the latest IPS5000 Automatic programming solution provide one-stop solutions for customers in the semiconductor and electronic manufacturing fields. The company has served such global leading customers as Huawei, BYD and Foxconn.
